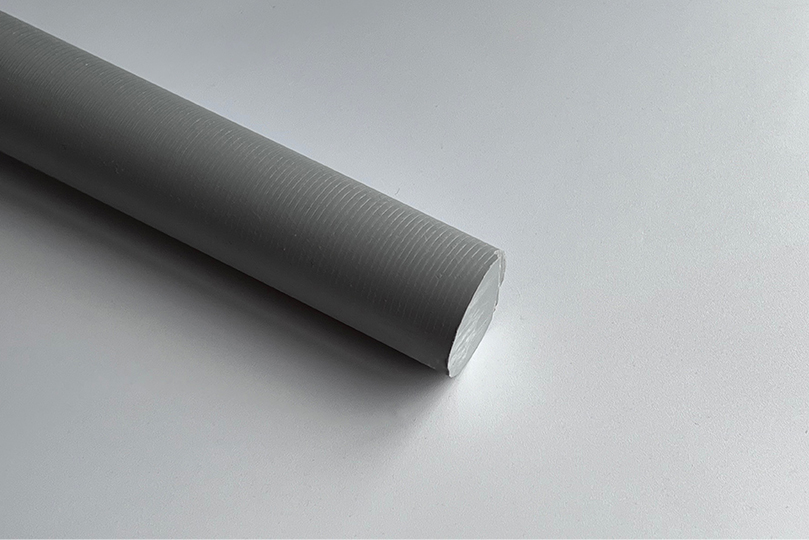

PSU Rod Grey
Overview :
PSU (polysulfone) is a slightly amber amorphous transparent or translucent polymer with good radiation stability, low ionic impurities and good chemical and hydrolysis resistance.The maximum allowable working temperature in the air is very high (it can work continuously at 160℃). It has excellent electrical performance in a wide range of temperature and frequency. And good chemical stability, good mechanical strength and high rigidity in a wide temperature range performance.

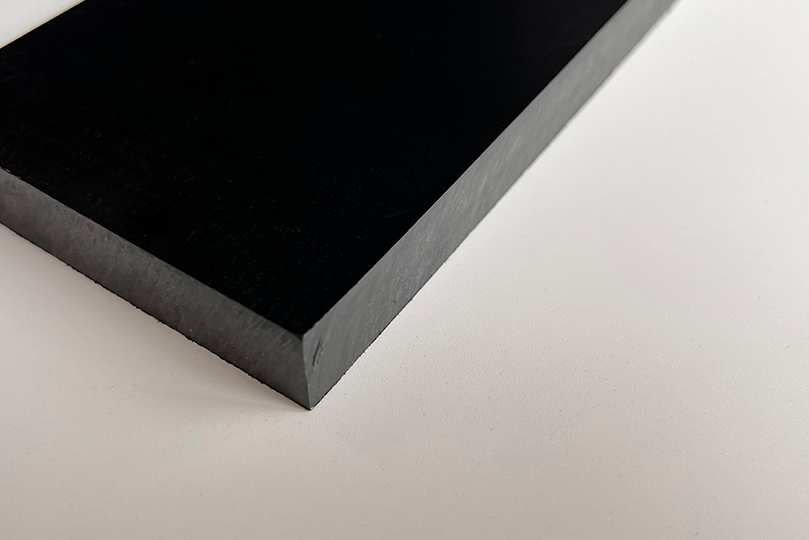

General Dimensions of PSU Board
| LENGTH (mm) | WIDTH (mm) | HEIGHT (mm) | TOLERANCE MAX (mm) | WEIGHT (KG) |
| 1250 | 620 | 4 | +2 | 5.1 |
| 1250 | 620 | 6 | +2 | 7.14 |
| 1250 | 620 | 8 | +2 | 9.18 |
| 1250 | 620 | 10 | +2 | 11.22 |
| 1250 | 620 | 15 | +2 | 16.32 |
| 1250 | 620 | 20 | +2 | 21.42 |
| 1250 | 620 | 25 | +2 | 26.52 |
| 1250 | 620 | 30 | +2 | 31.62 |
| 1250 | 620 | 35 | +2 | 36.73 |
| 1250 | 620 | 40 | +2 | 41.83 |
| 1250 | 620 | 45 | +2 | 46.93 |
| 1250 | 620 | 50 | +2 | 52.03 |
| 1250 | 620 | 60 | +2 | 62.23 |
| 1250 | 620 | 70 | +2 | 72.43 |
| 1250 | 620 | 80 | +2 | 82.63 |
| 1250 | 620 | 90 | +2 | 92.83 |
| 1250 | 620 | 100 | +2 | 103.04 |
Please contact us and ask for special dimensions.
Typical Application
Automobile Industry
Aerospace
Household Appliance
FAQ：
Whether to provide the sample and the delivery time of the sample ?
We can provide a sample of 3kg in stock within 5 working days.
Q1
Can you provide customized services?
Yes, all our raw materials can be customized, such as adding glass fiber, carbon fiber and other fillers, or making boards and rods of different sizes. Click for details to learn more>>
Can you provide the quality certificate of the products?
Of course. All of our products are proven to be perfectly compliant with FDA, REACH and RoHS safety regulatory, and so on. If you need, you can contact us to check the relevant documents.
Q3
Are you manufacturer or trading company?
We are integral part of industry and trade. Both the agency of some products, but also a factory for product development and production.
Q4
About bulk order leading time?
It will take about 15~30 working days from order confirmation to production completion. Specific communication can be coordinated to the time acceptable to both side.
